Product Details
＋

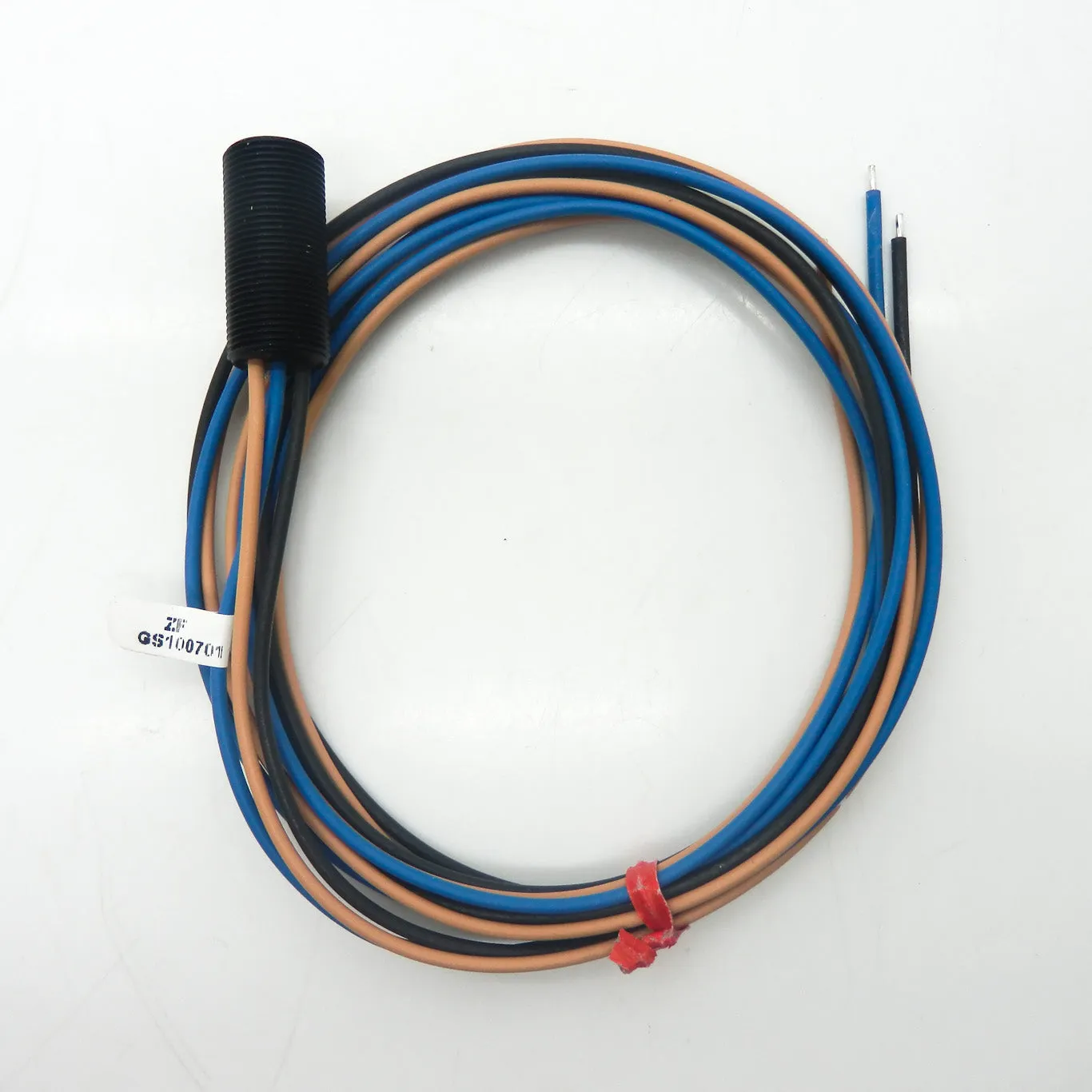

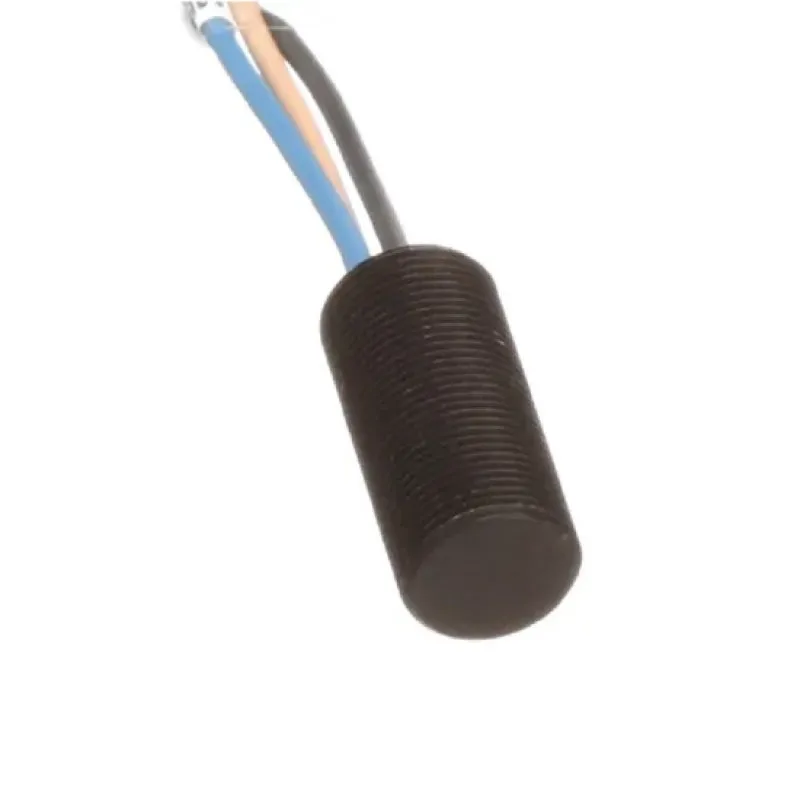

The GS1005-GS1007 series gear tooth speed sensors are Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.

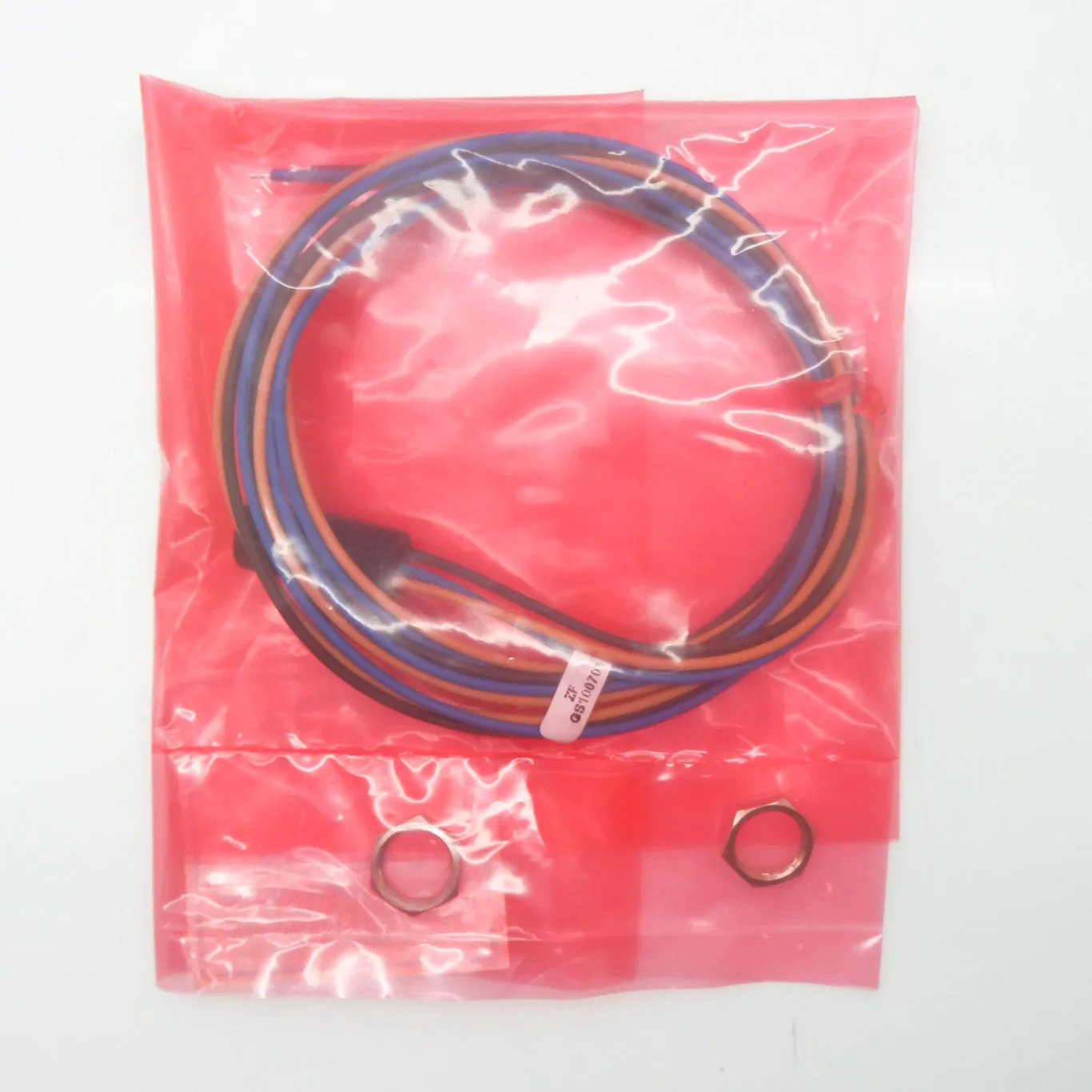

It comes as pictured and does not include any additional parts or accessories.
Typical Applications:
- Speedometers
- Anti-lock Braking Systems
- Exercise Equipment
- CNC Machine Tools
Specifications:
- Function: Speed
- Housing Material: Aluminum
- IP Rating: IP67
- Mounting Thread Size: 15-32 in.-32
- Mounting Type: Threaded
- Operating Temperature: -40 to 125 °C
- Output: Analog Voltage/Current
- Output Current: 25 mA (Max.) A
- Output Voltage: 400 mV (Max.) V
- Sensing Mode: Adjustable Field
- Series: GS1007 Series
- Supply Current: 6 mA (Max.) A
- b 24 VDC
- Switching Current: 25 mA
- Switching Voltage: 400 mV
- Technology: Hall Effect

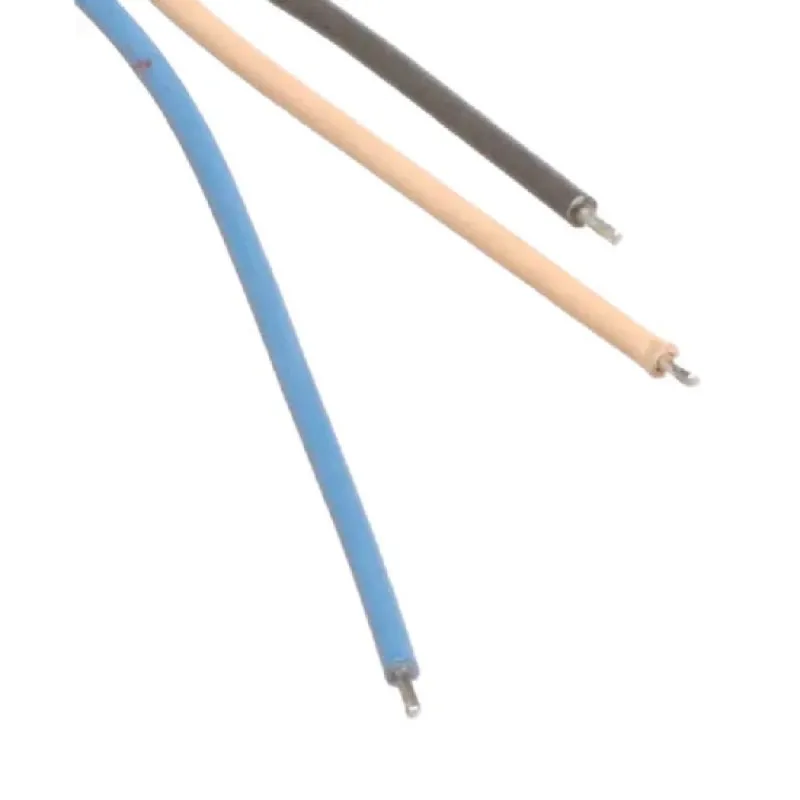

- Termination: Cable 3-Wire
